Battery or USB Powered WiFi Bluetooth Serial Converter SD Card Data Logger K471

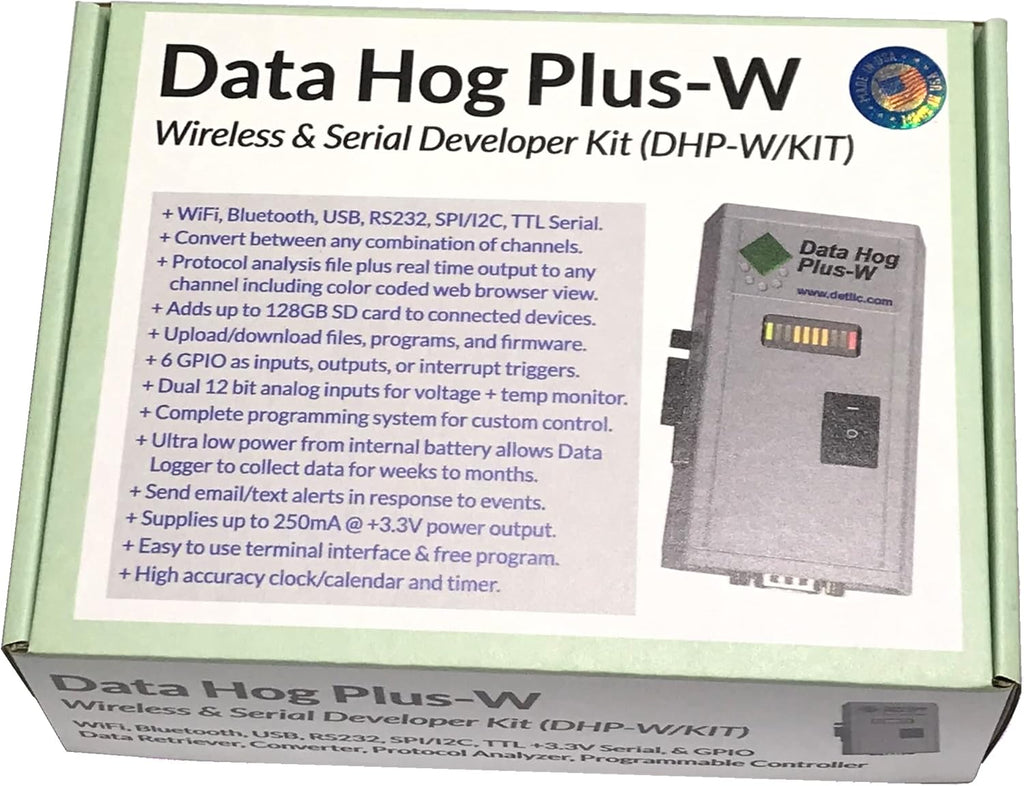

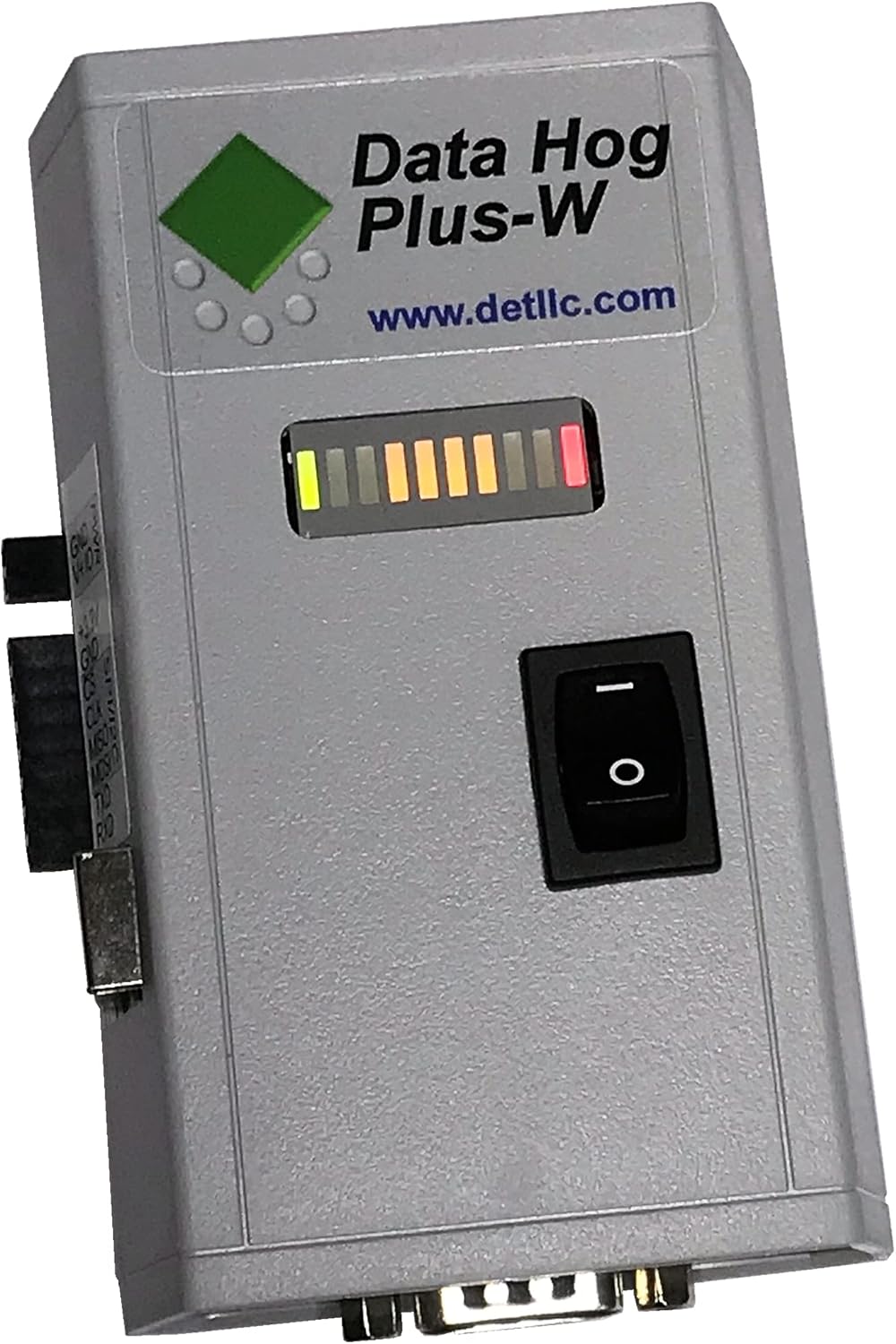

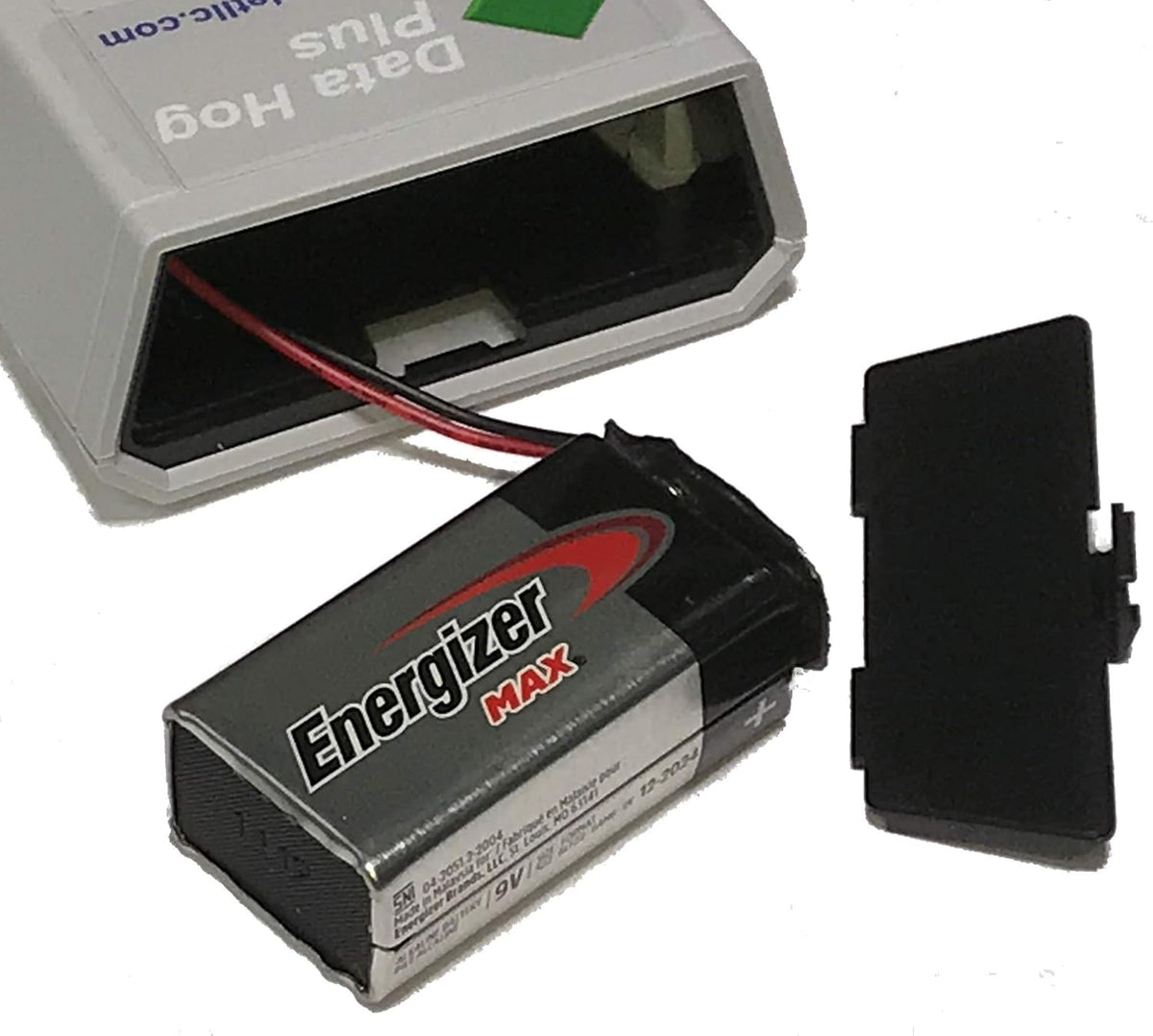

The Data Hog PlusW is our most advanced and powerful data collector platform that allows engineers, makers, students, and teachers of all interests and skill levels to: Connect to anything with WiFi, Bluetooth, RS232, USB, TTL logic Level, or SPI/I2C serial port Convert between different channels (USB to RS232, WiFi to USB, Bluetooth to WiFi, USB to both RS232 and WiFi, etc) in almost any combination Send email or text messages in response to specific situations or events Add up to 128GB SD Card to any serial channel with easytouse file transfer protocol Send commands and upload/download programs and data to anything with a serial channel Data logger with ultralow power modes can last 68 weeks from standard 9V battery, 4 months from lithium High accuracy clock/calendar with millisecond timer Colorcoded protocol analysis file of channel communication Analysis can be saved to file or sent out any channel in real time including direct to web browser eliminating need for monitoring software Control devices with Logic Level Serial, I2C, or SPI channels with custom interface 6 general purpose Input/Output (GPIO) pins for connection to switches, relays, and devices. GPIO can also be used as action triggers for events and timestamps 2 analog voltage inputs plus internal temperature monitor can be reported on any channel or stored in a file for easy battery/voltage monitoring Ten segment color coded bar graph displays status, channel activity, or level graph Custom programming system accessed by simple terminal can run programs, input or output data, and create files and directories Can provide up to 250mA at +3.3V power with very low noise to external devices Made in USA And more Kit includes: Windows DTerminalinch application with specialized functions 16GB SD Card + Reader Serial & USB Cables 10 pin wiring harness plus 2 and 8 pin headers
